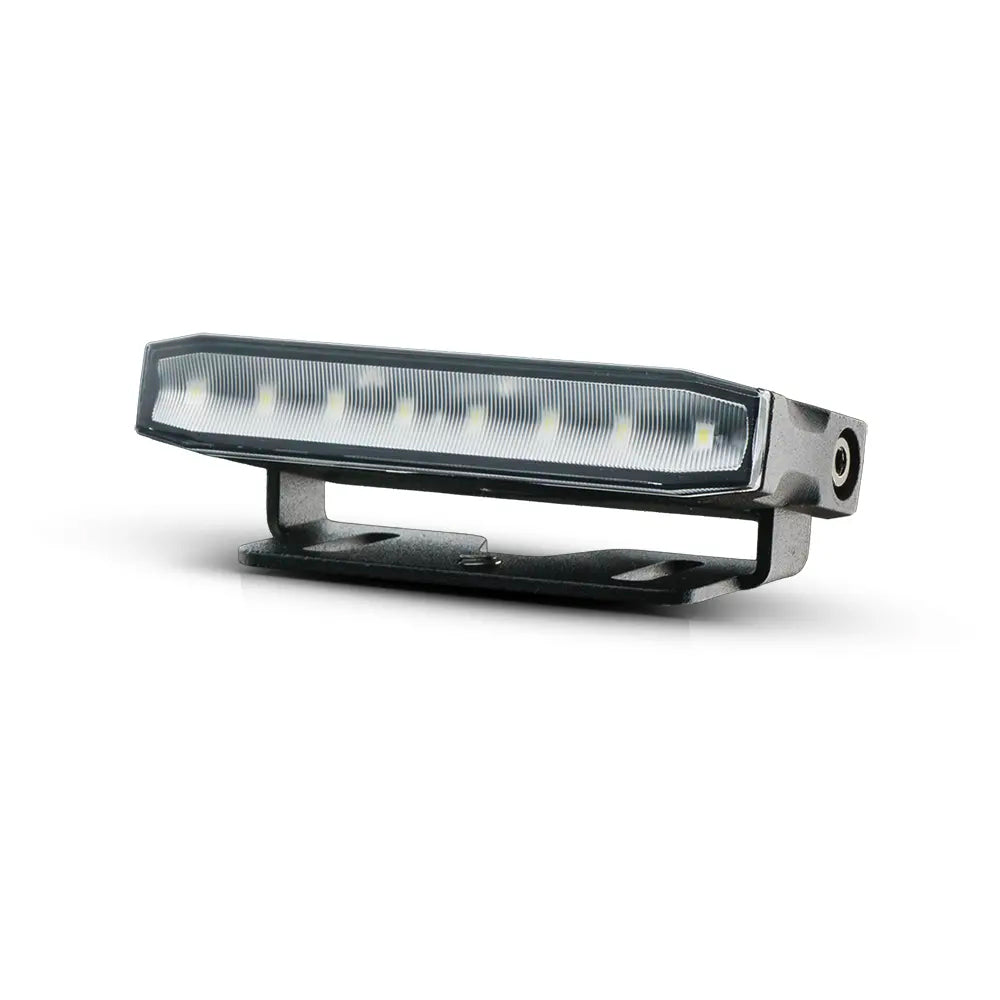

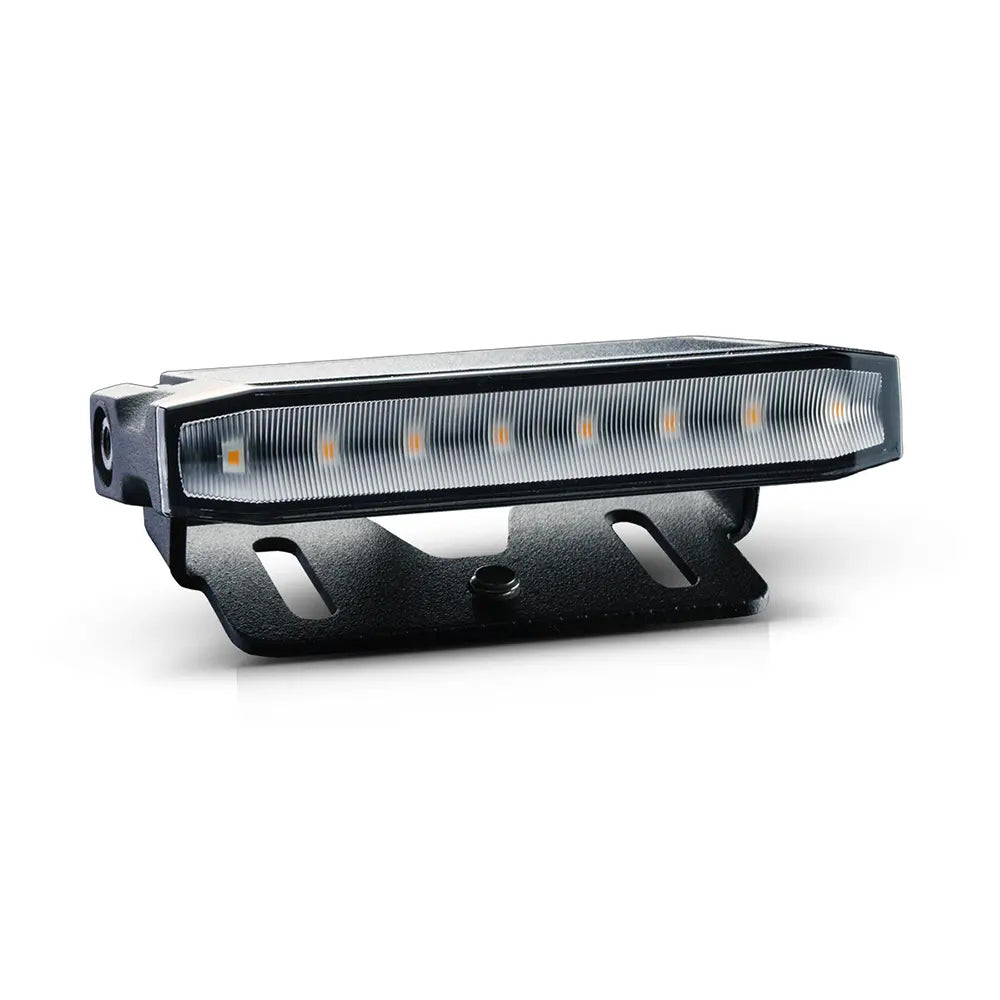

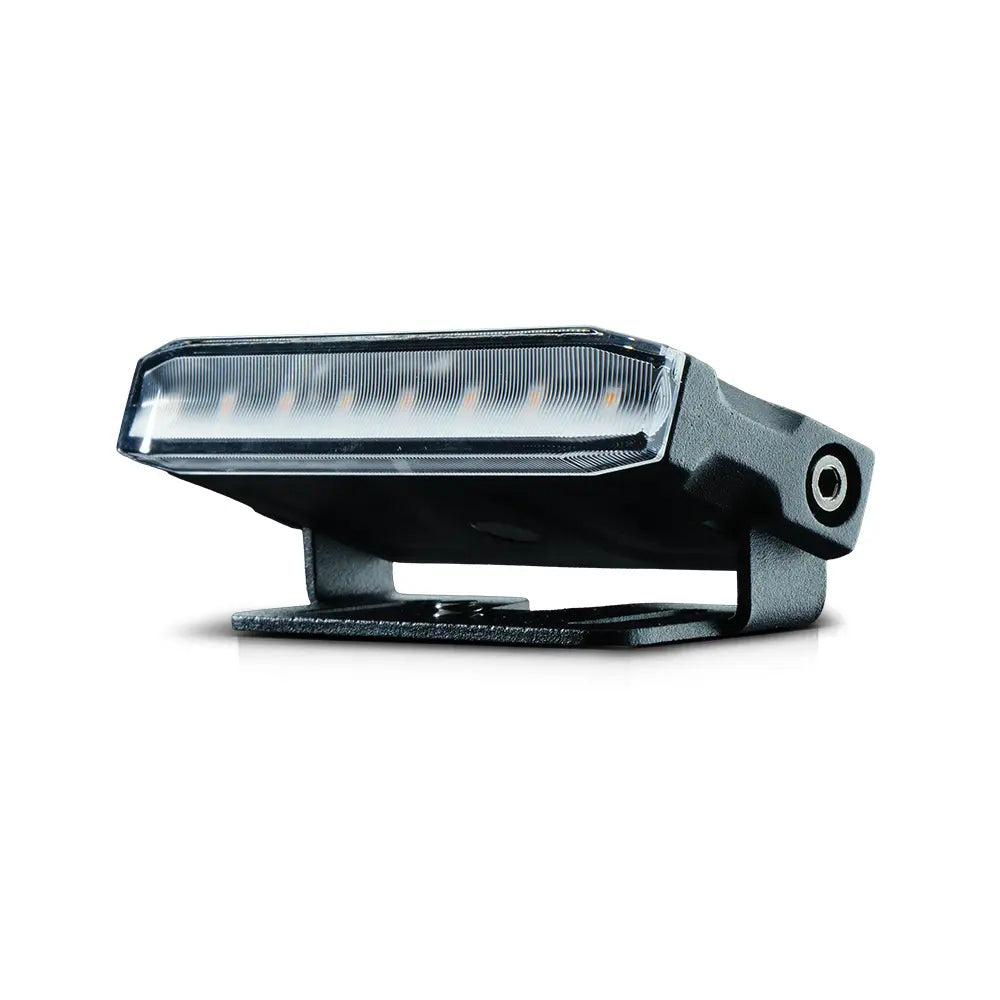

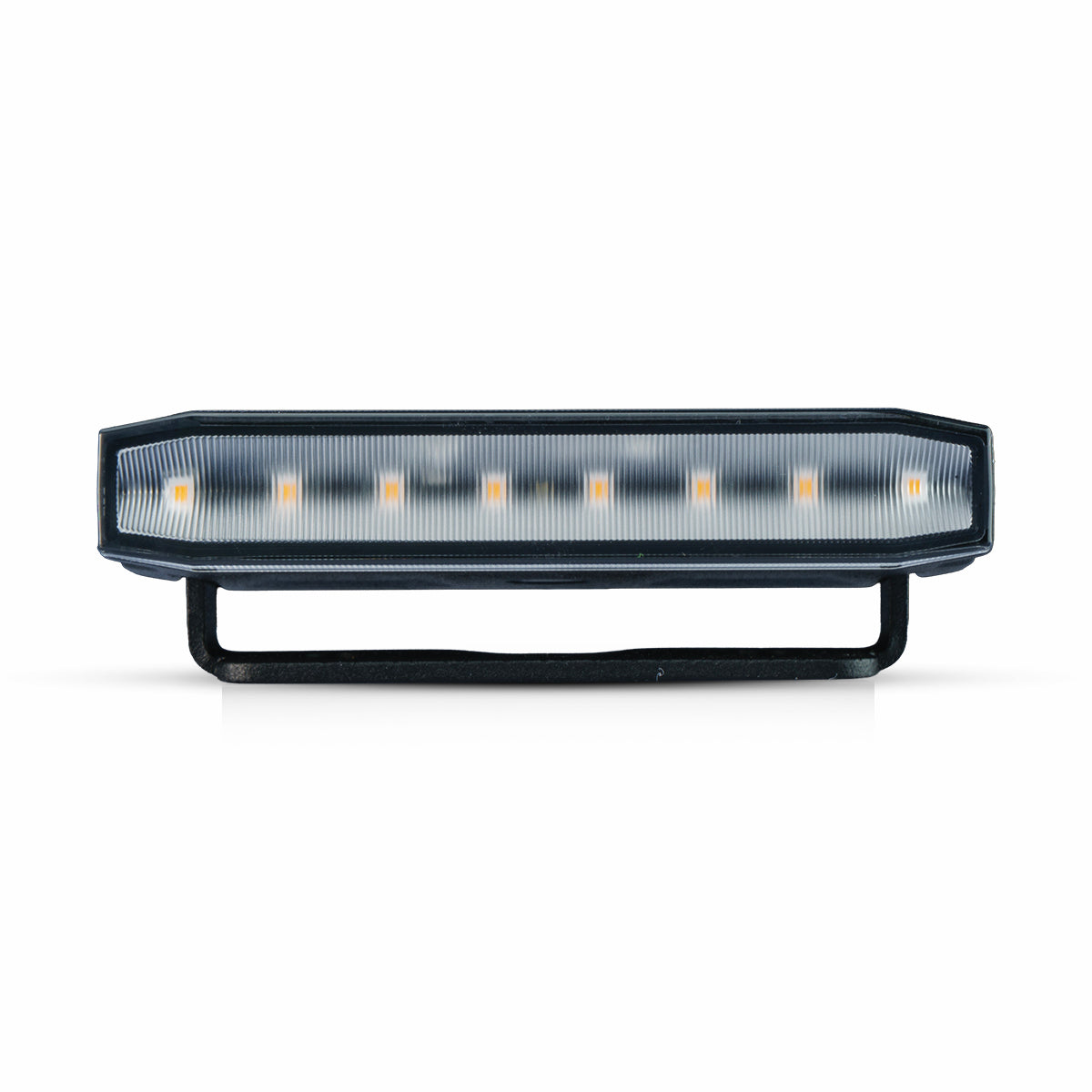

Monsterlux Level Work LED Work Light

Compact and powerful work light for close-range illumination

• 160° wide flood beam pattern – effectively illuminates the entire surrounding area
• 1800 lm light output – a powerful work light for its size class
• Extremely compact size – fits into tight installation spaces
• 5000 K natural light – pleasant and clear for working
• R23 approved – also suitable as a reversing light

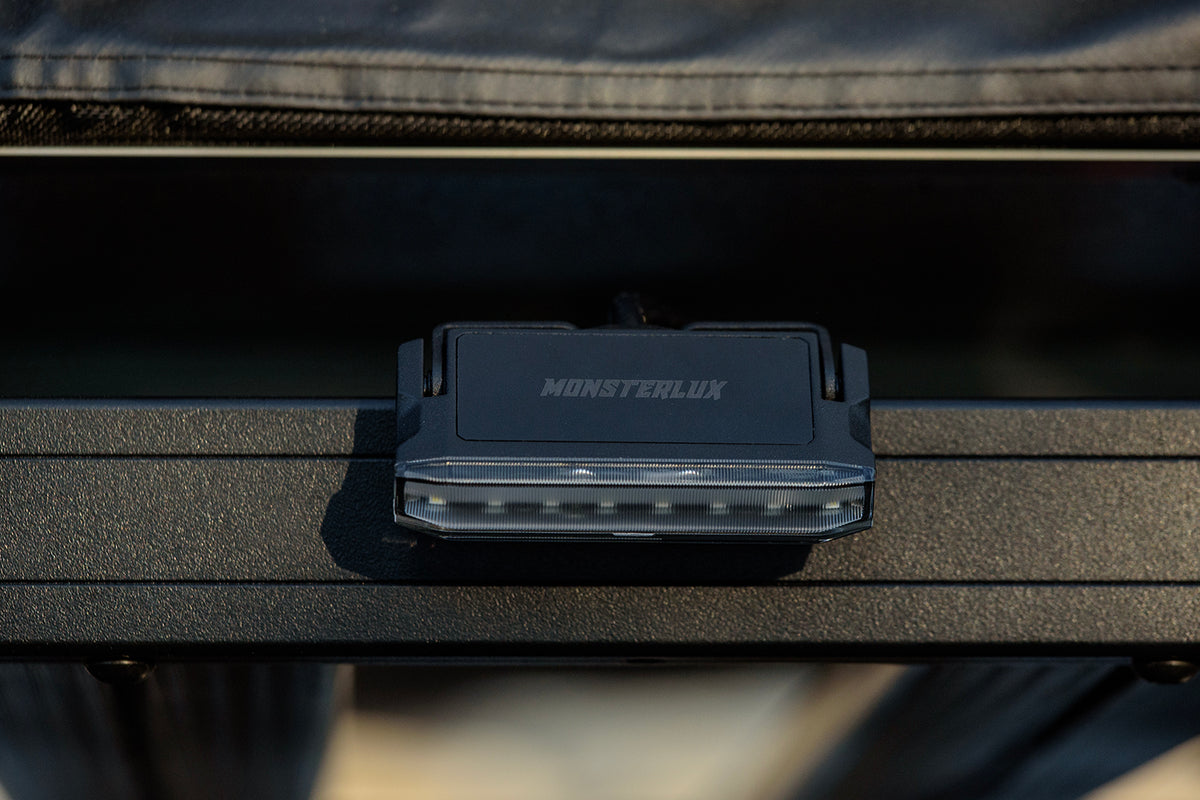

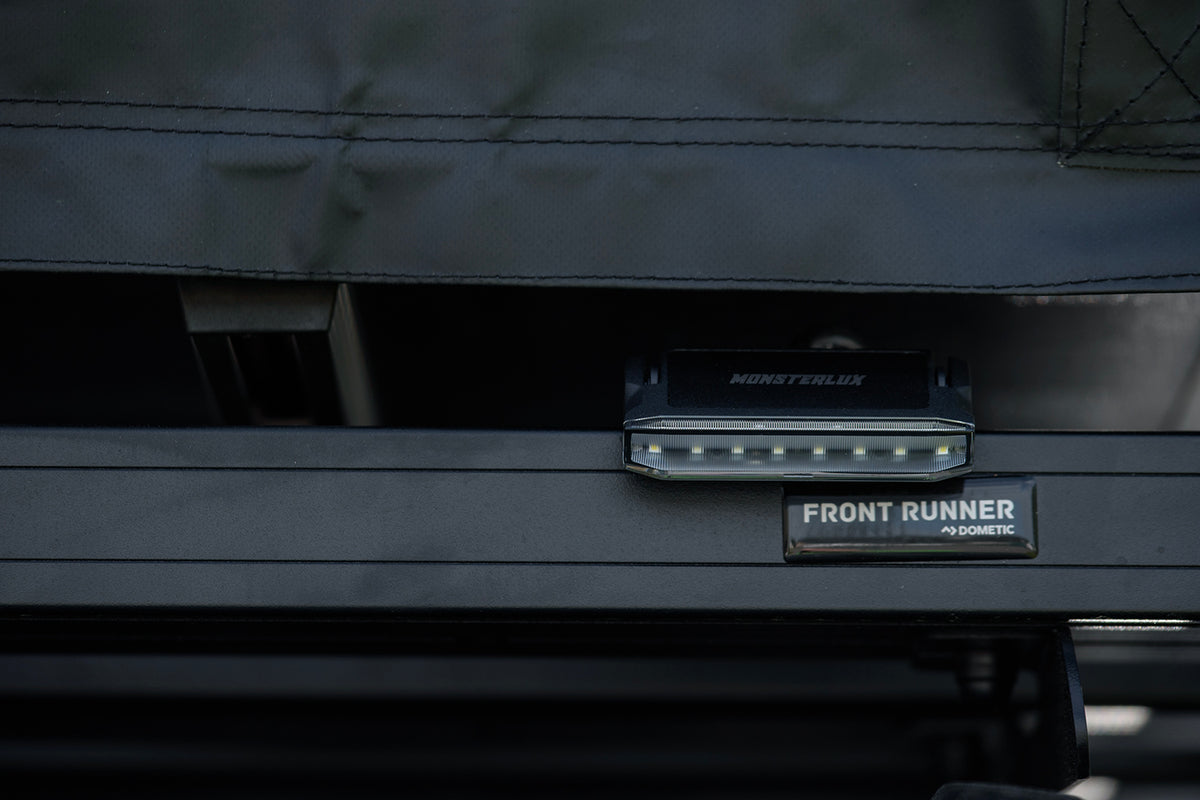

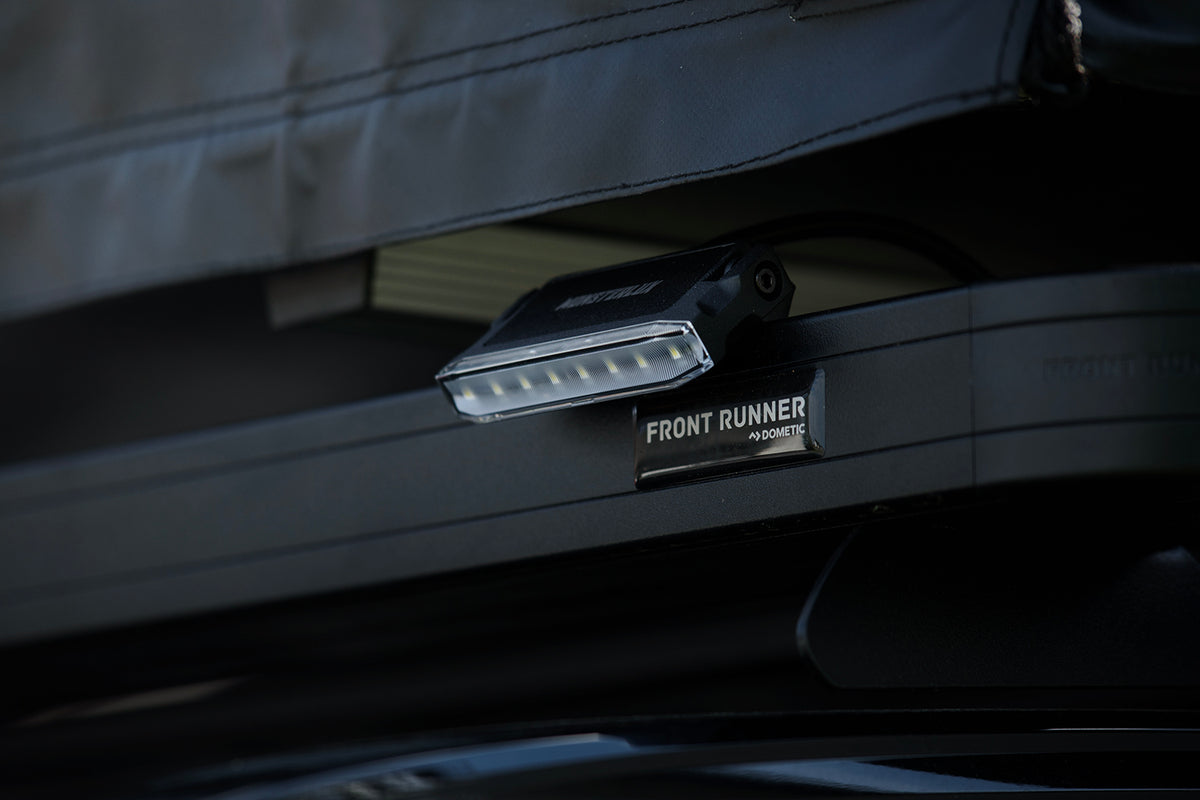

• Versatile installation – work light, hitch light or step light

The Monsterlux Level Work LED work light is an extremely compact and super-powerful work light with a wide beam pattern for situations where you need wide, even light in a tight installation space. Thanks to its small size, it fits applications where a conventional work light simply will not fit – without compromising light output.

The 160-degree flood beam pattern produces wide, even light across the surrounding area, making work safer and easier. The 5000 K colour temperature provides natural light that does not strain the eyes, even during prolonged use.

This work light is designed especially for close-range work and wide work areas. Its compact size, lightweight construction and moderate current draw make it an excellent choice both as an auxiliary light and as a task light for various vehicles and machines.

R23 approval also permits use as a reversing light. Depending on the mounting location and application, the Monsterlux Level Work also functions as the primary work light when a wide beam pattern is needed at close range.

Why choose the Monsterlux Level Work LED work light?

• Extremely wide 160° work-light beam pattern – effectively illuminates the entire surrounding area.
• Designed for close-range work – clear visibility around the machine and vehicle.
• Compact size – performs excellently in tight installation spaces.
• Lightweight and low current draw – easy to install without placing a heavy load on the electrical system.
• R23 approved – also suitable as a reversing light.

Who is it for?

The Monsterlux Level Work is suitable for versatile use in passenger cars, vans, tractors, excavators, forestry machines, trucks, snowmobiles, ATVs, Avant-type compact machines and work machinery in general.

It is a particularly good choice in situations where wide light is needed at close range: for illuminating a work area, as a reversing light, vehicle interior light, hitch light or step light. Thanks to its compact size, it works in places where larger lights do not fit.

Technical specifications:

• Product number: 3555-401501
• Make and model: Monsterlux Level Work
• Lumens: 1800 lm (measured)
• Colour temperature: 5000 K
• Current draw at 13.7 V: 1.84 A
• Operating voltage: DC 9–36 V
• Power: 25 W (measured)
• Position light: No
• Approved as a reversing light: Yes (R23)
• Approvals: CE, R10, R23, RoHS
• IP rating: IP68 / IP69K
• Connector type: 2-pin Deutsch DT
• Mating connector: Yes
• Cable length: 35 cm + 15 cm mating connector
• Dimensions: 90 × 16 × 49 mm (Width|Height|Depth) ((Height with bracket 25 mm))
• Weight: 0.2 kg
• LEDs: 8 × 4 W LED
• Housing material: Aluminium
• Warranty, months: 12

Installation and important notes

Thanks to its compact construction, the light is easy to install in various vehicles and machines. It is ideal as a reversing light, work light, hitch light or step light. Note: Always install the light with the Monsterlux logo facing upwards to ensure that the breather valve points downwards.

R23 approval permits use as a reversing light. When used as a work light, its wide flood beam pattern is at its best for illuminating the surrounding area, not long-range targets.
