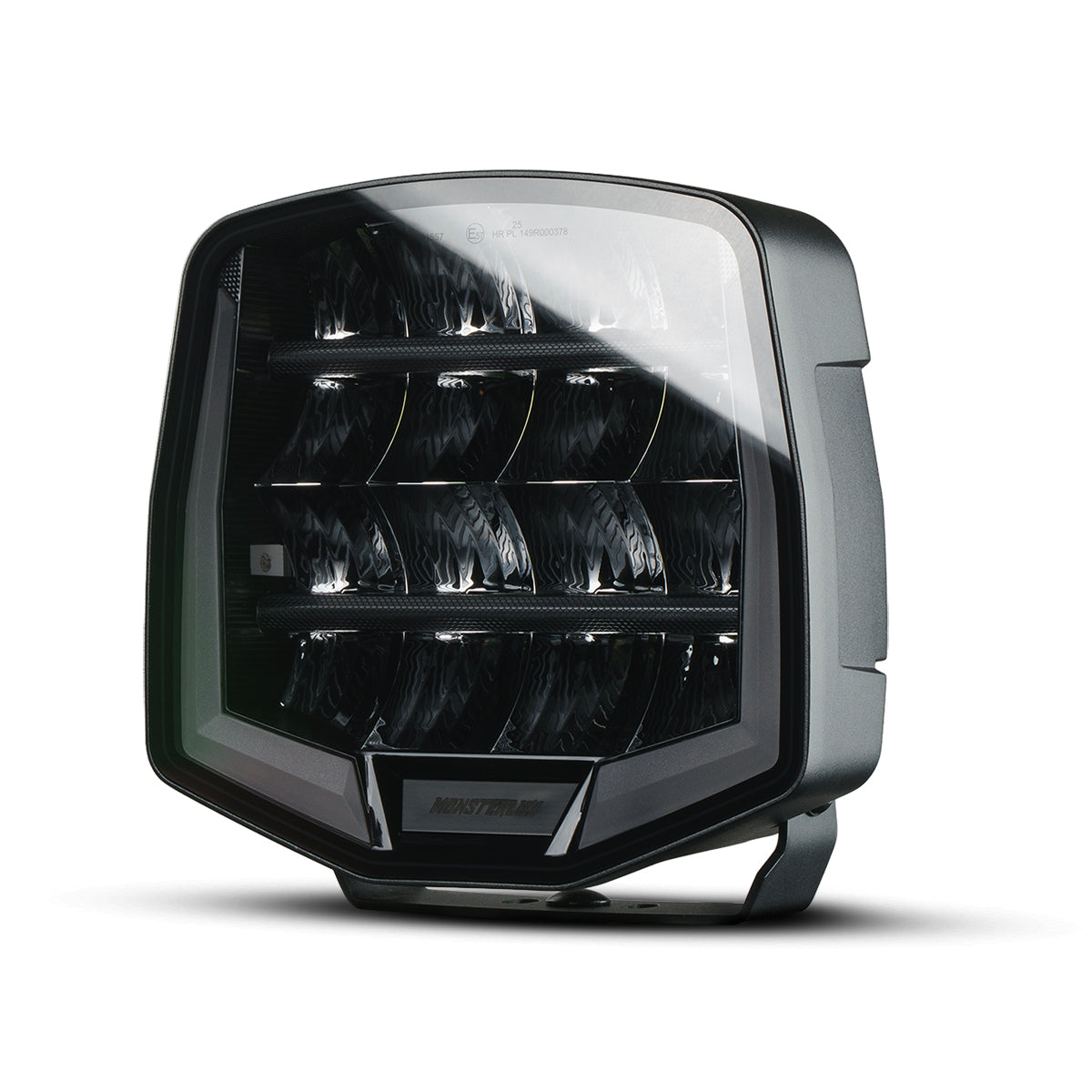

Monsterlux Dark Digger 10 LED Auxiliary Light

A new-generation LED auxiliary light with intelligent e-Safe mode

• Dual-mode Vision Select – e-Safe for road use, Monster Mode™ for off-road use
• Over 680 m range at 1 lux in Monster Mode
• Smooth housing repels dirt and is easy to clean
• Horn-shaped position lights in white and amber with a start-up animation
• Wide and full beam pattern that also illuminates the roadsides
• Exceptional cut-off optics in e-Safe power mode -> less glare for oncoming traffic

The new generation is here – maximum performance with a controlled beam pattern

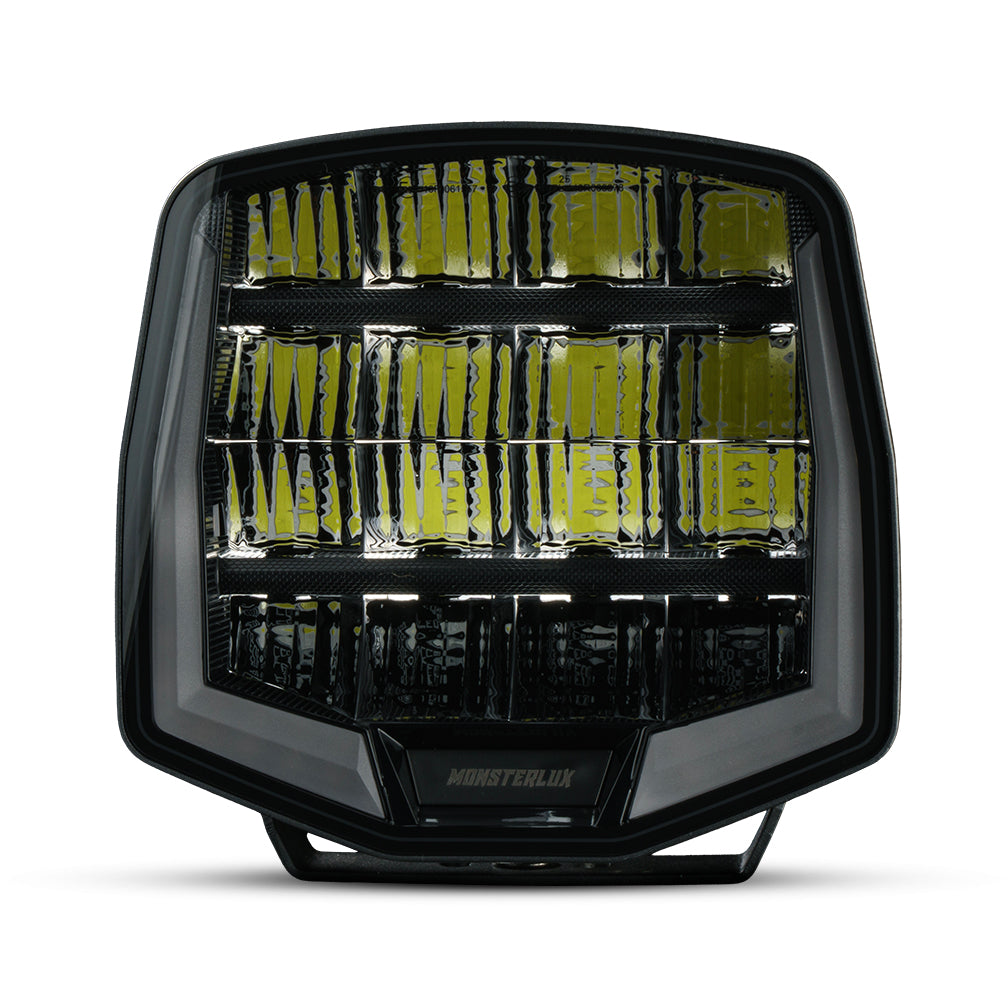

Monsterlux Dark Digger 10 (DD10) combines top-class light output, long range and genuinely functional design. The smooth housing repels dirt, the horn-shaped position lights with a start-up animation stand out in style, and the dual-mode Vision Select optics provide both the road-compatible e-Safe mode and the full-performance Monster Mode™ power mode.

Power and range that redefine auxiliary lighting

The DD10 is designed for situations where both long range and reliable wide-area visibility are required.

Vision Select – two intelligent modes for all conditions

e-Safe – Road-approved and intelligent lighting mode

The e-Safe function provides a road-approved beam with an optically limited beam pattern and effective glare protection. It makes driving safer and more comfortable in heavy traffic or demanding driving conditions without compromising visibility.

When there is so much oncoming traffic that the long-range Monster Mode cannot be used, you can activate e-Safe mode. This brings the beam closer to the vehicle and eliminates upward-directed stray light, allowing you to keep the high beams on for longer when encountering oncoming traffic before switching to low beams. This reduces the amount of time you have to drive using only low beams – moments that can feel particularly long when you are accustomed to driving with long-range lights. It also works excellently with automatic lighting systems.

Unlike conventional road modes that merely dim the light, the DD10’s e-Safe mode uses completely separate optics for the road-approved mode. This is the first of its kind in the world, and the Monsterlux Dark Digger makes it available to drivers.

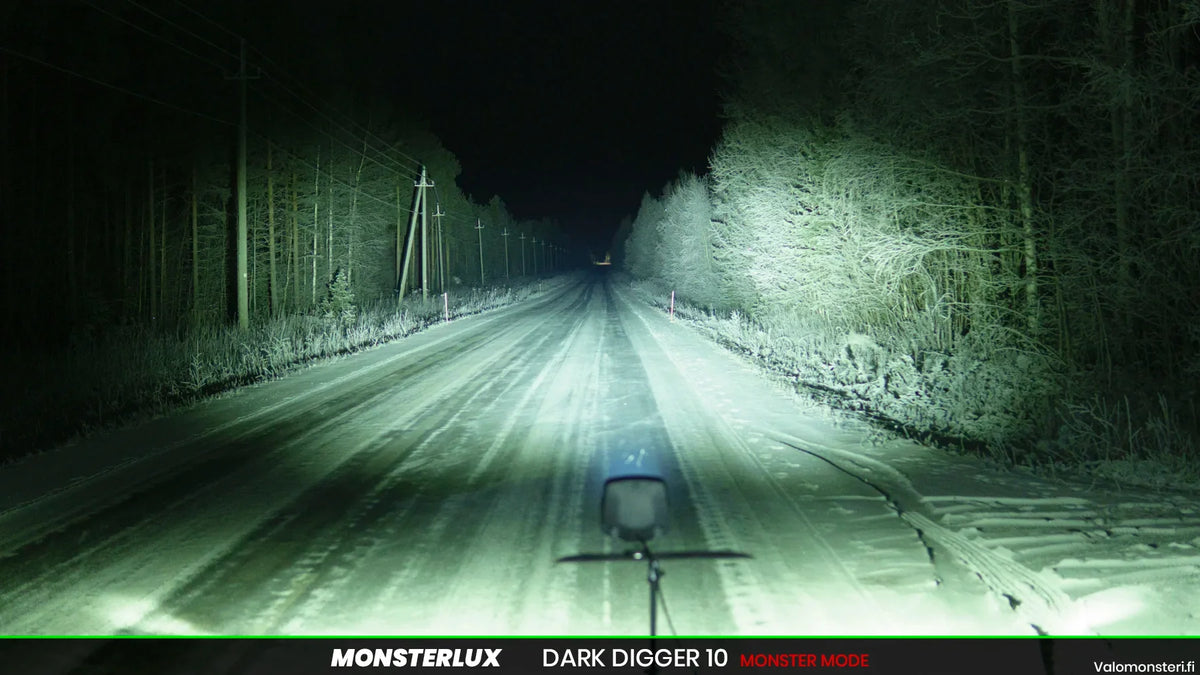

Monster Mode™: unleashes the DD10’s full potential

The DD10 is designed for drivers who demand maximum range and reliable visibility in all conditions. A single light delivers a range of more than 700 metres at 1 lux, placing it among the market leaders. The wide and full beam pattern also illuminates the roadsides across a broad area, making driving safer and more comfortable.

When you need all the available power, Monster Mode™ unleashes the DD10’s full potential for off-road use and private roads, providing significantly greater range and light output than e-Safe mode.

Note! Monster Mode is not intended for road use and requires a separate connection using its own wire and switch.

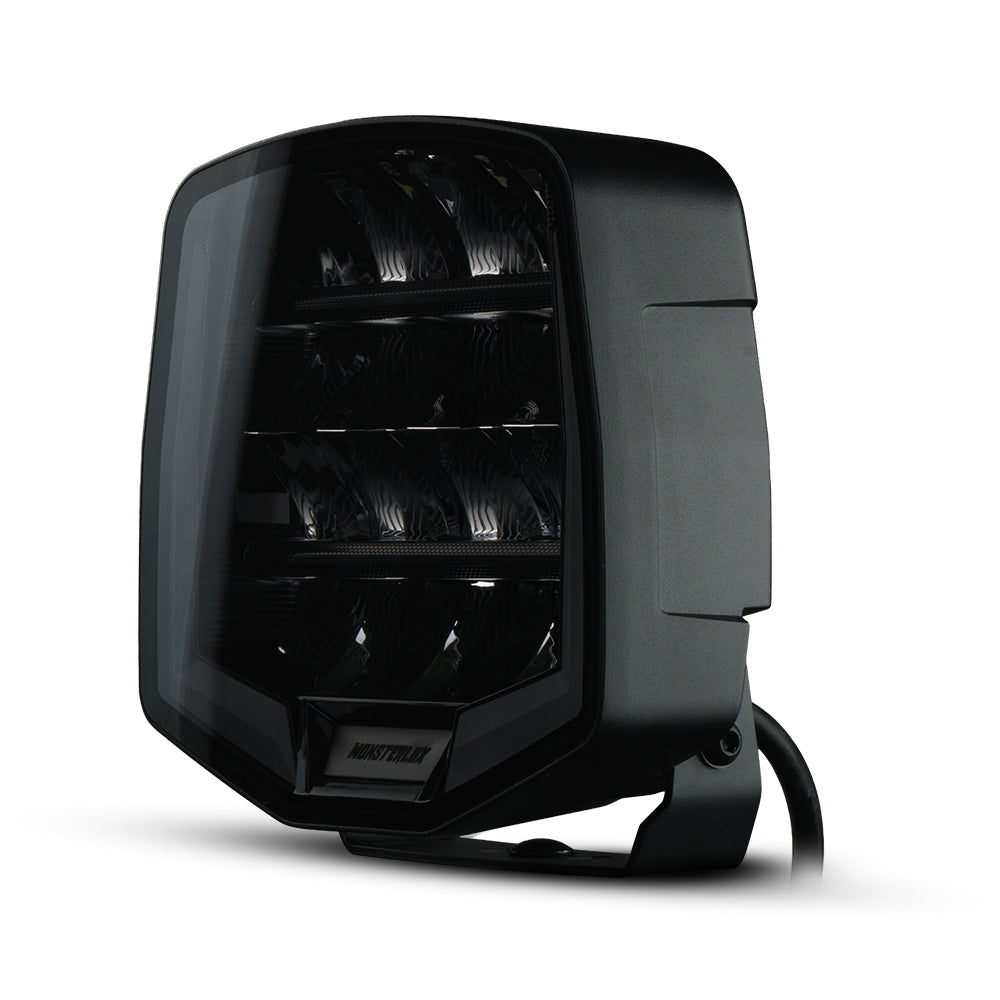

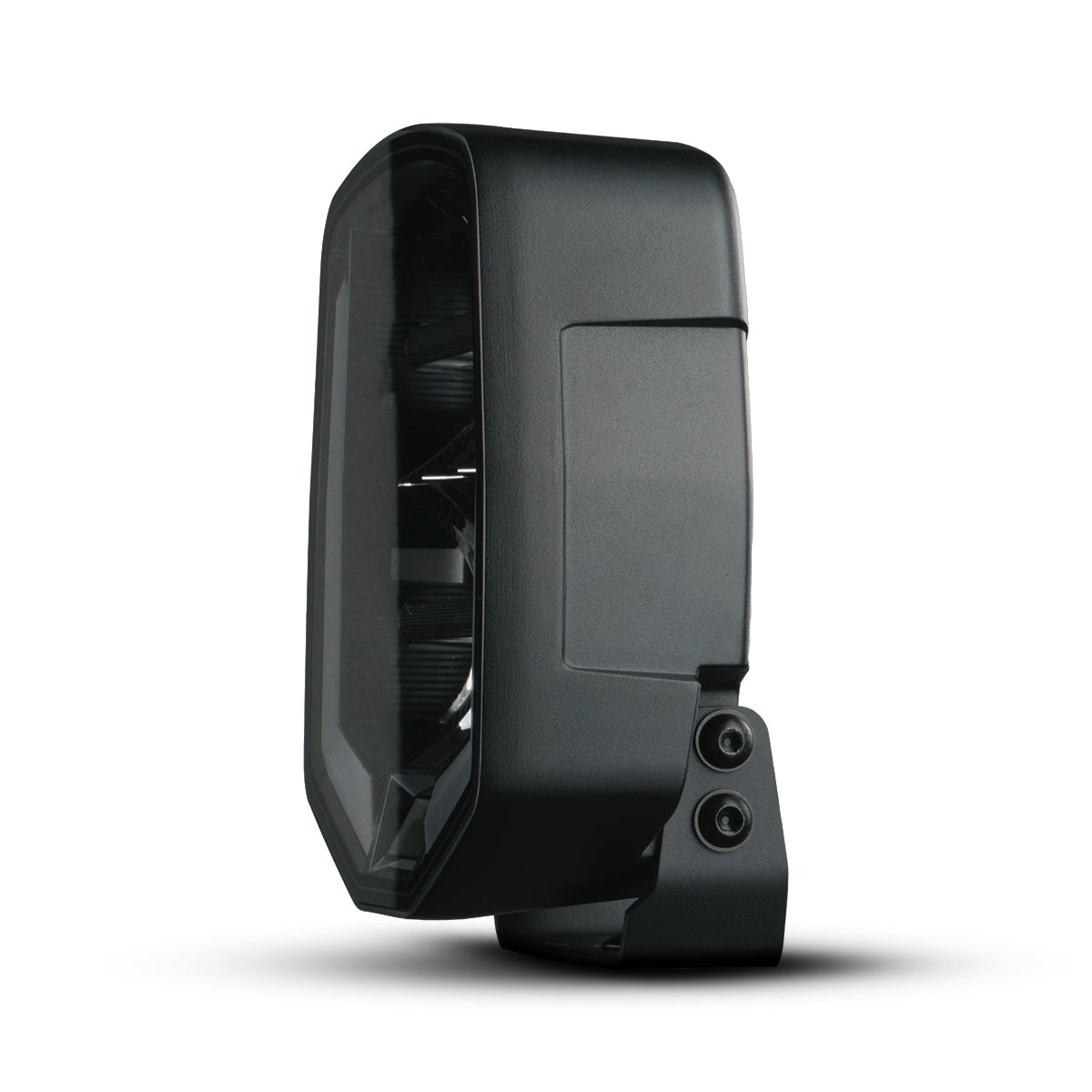

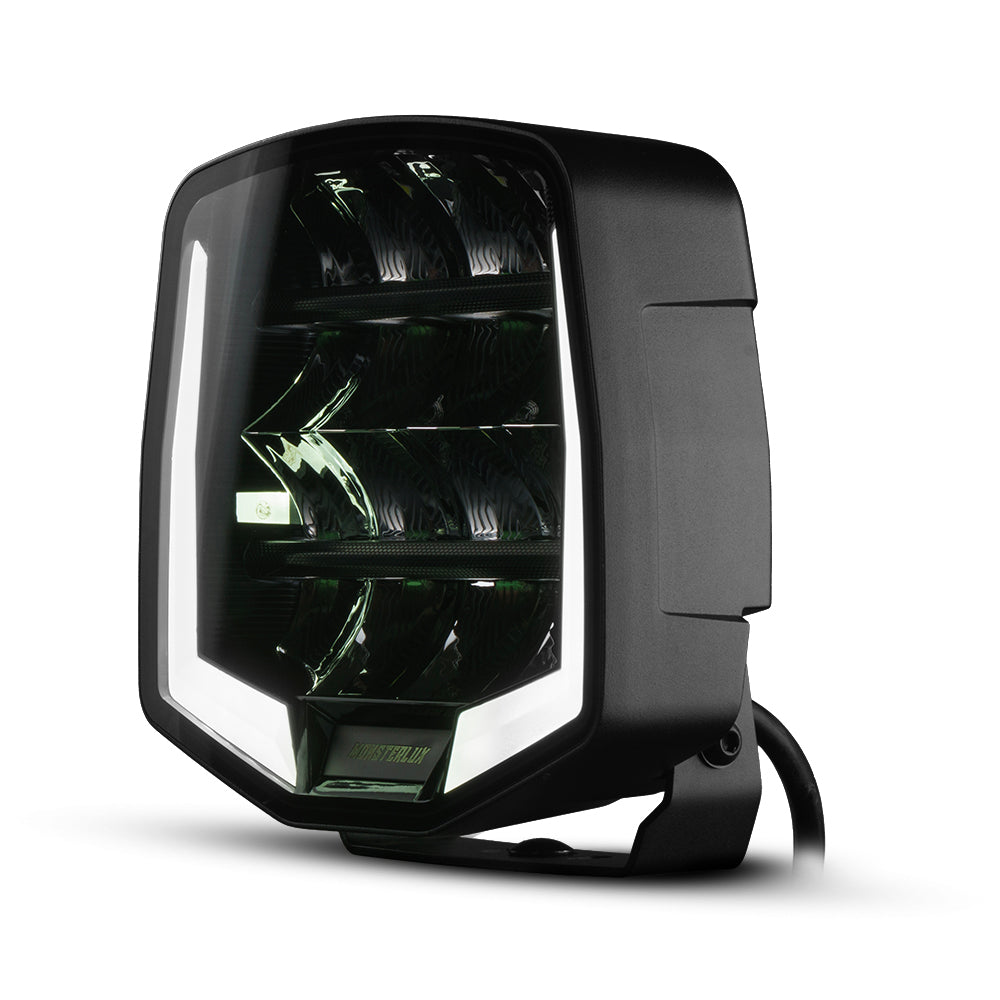

Smooth, dirt-repellent housing – stylish and effortless

The one-piece, smooth outer housing minimises dirt accumulation and makes cleaning easier. Cooling has been optimised for the demands of the power mode, ensuring sustained high performance.

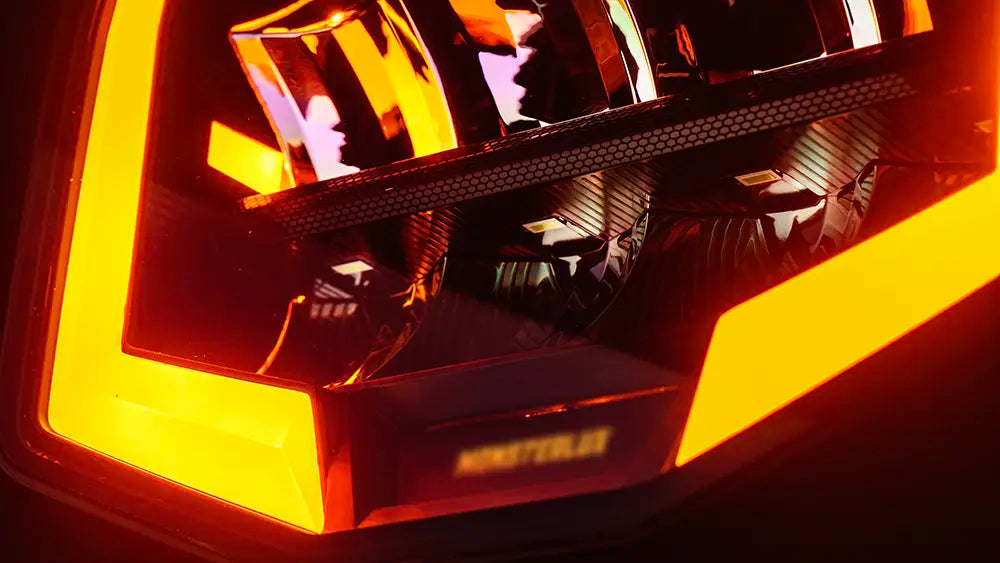

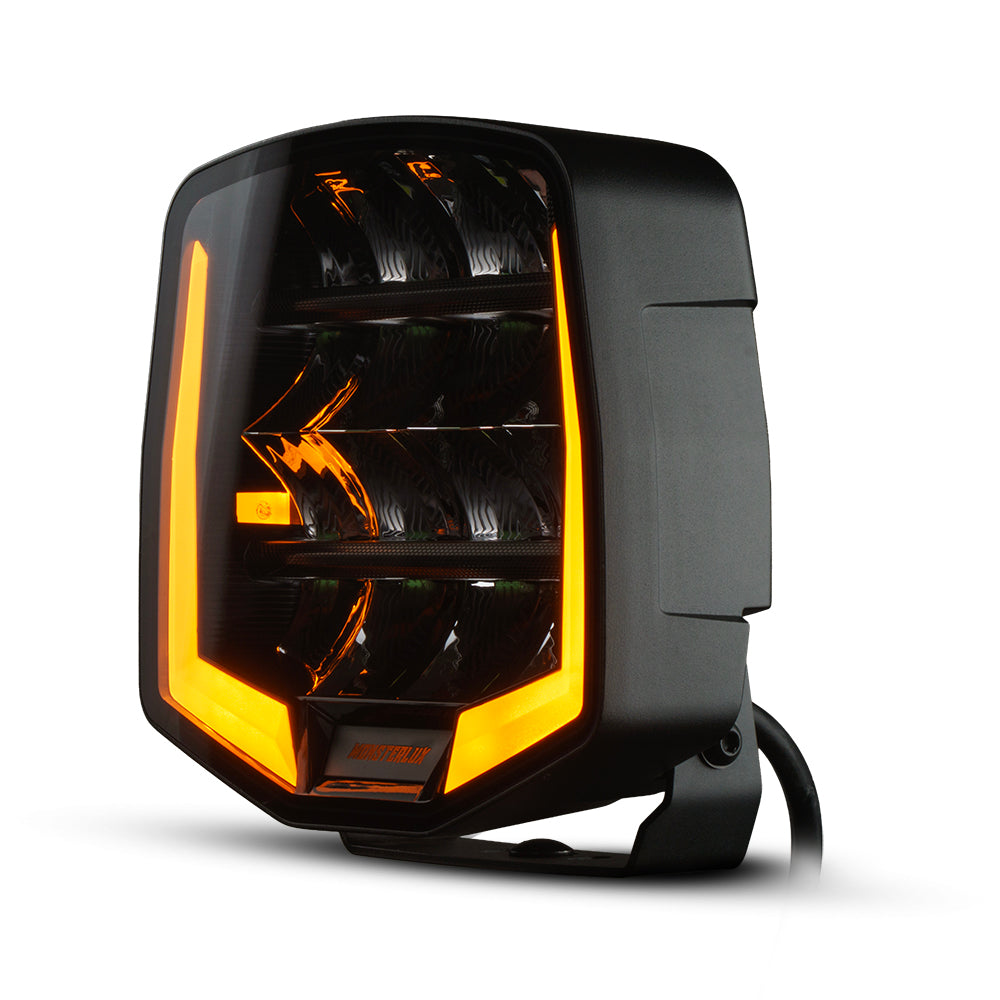

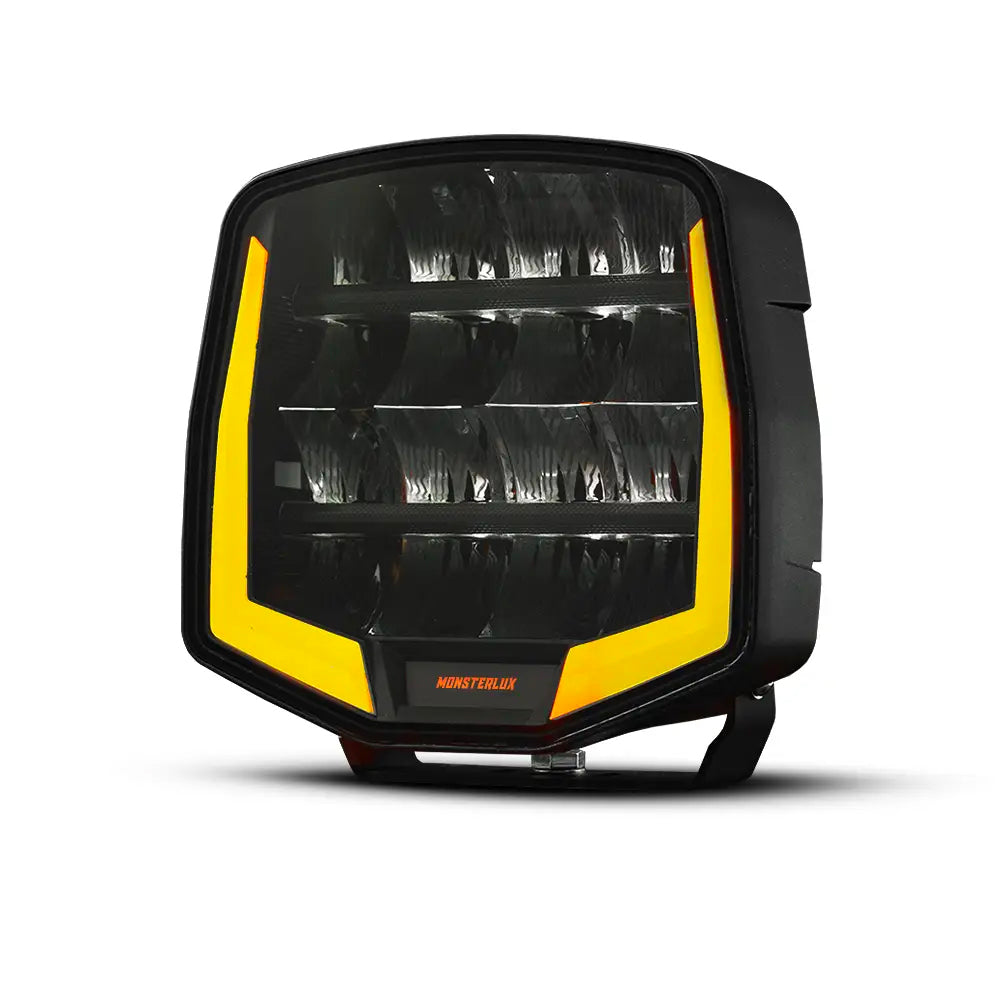

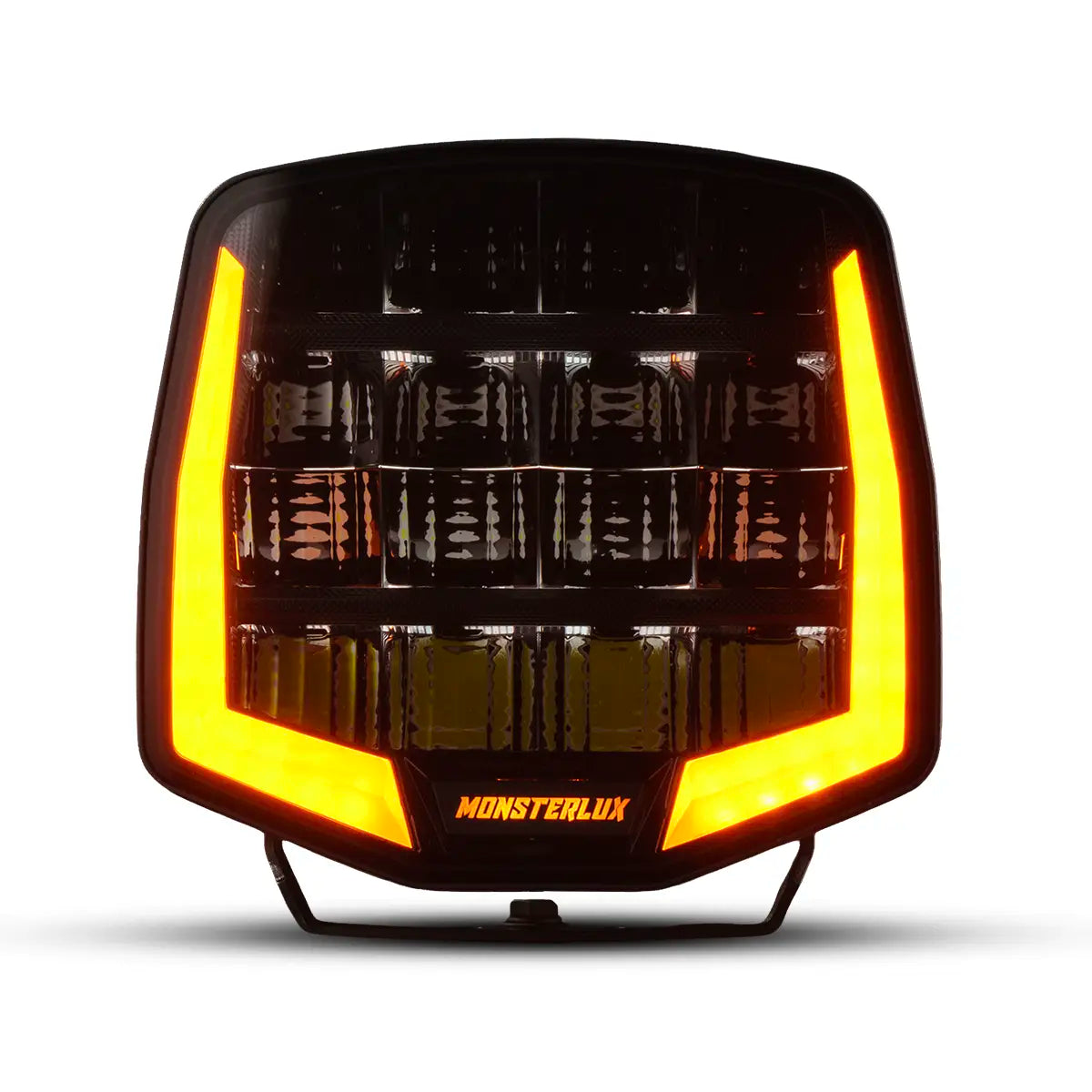

Horn-shaped position lights that get noticed

Impressive horn-shaped position lights in white or amber and a striking start-up animation complete the look. Visibility is improved, and the vehicle stands out from the crowd.

View the installation instructions

Technical specifications

• Product number: 3555-901101
• Make and model: Monsterlux Dark Digger 10
• Lumens: 5600 lm (e-Safe, measured) / 16800 lm (Monster Mode, measured)
• Range at 1 lux: 340 m (e-Safe, measured) / 680 m (Monster Mode, measured)
• Colour temperature: 5000 K
• Current draw at 13.7 V: 3.68 A (e-Safe, measured) / 14.5 A (Monster Mode, measured)
• Operating voltage: 9–32 V
• Power: 50.4 W (e-Safe, measured) / 199 W (Monster Mode, measured)
• Reference number: 25 (e-Safe mode)
• Position light: Yes – horn-shaped position lights (white and amber)
• Road approved: Yes, in e-Safe mode (Monster Mode – not for road use)
• Approvals: R10, R149
• IP rating: IP68
• Connector type: 4-pin DTP
• Mating connector: Yes
• Cable length: 50 cm
• Shape: “Round”
• Dimensions: 221 × 208 × 83 mm (depth with bracket 123 mm) (Width|Height|Depth) ((Height with bracket 218 mm))
• Weight: 2.7 kg
• LEDs: 16 × 15 W LED
• Light output adjustment (boost): Yes, Monster Mode™ (off-road)

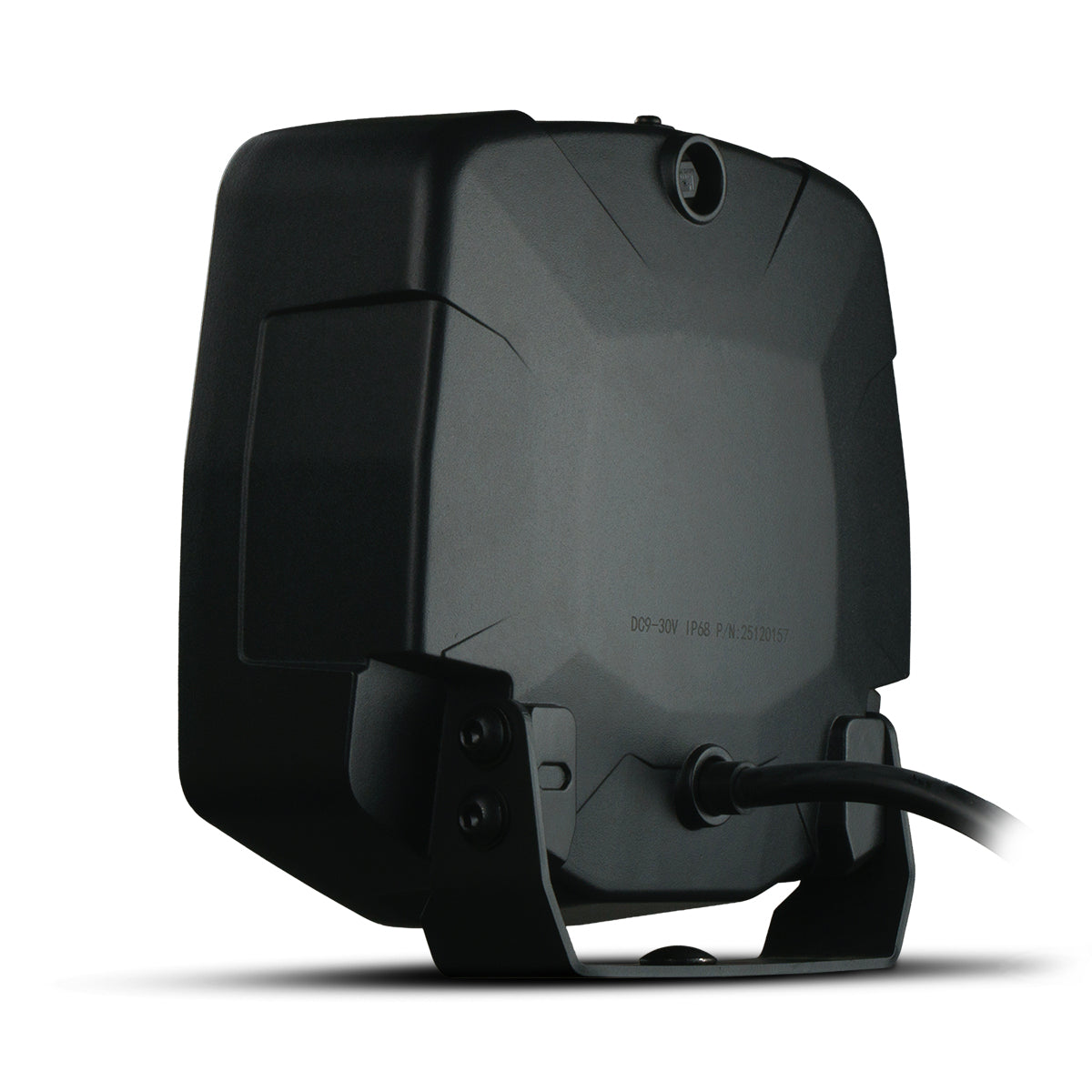

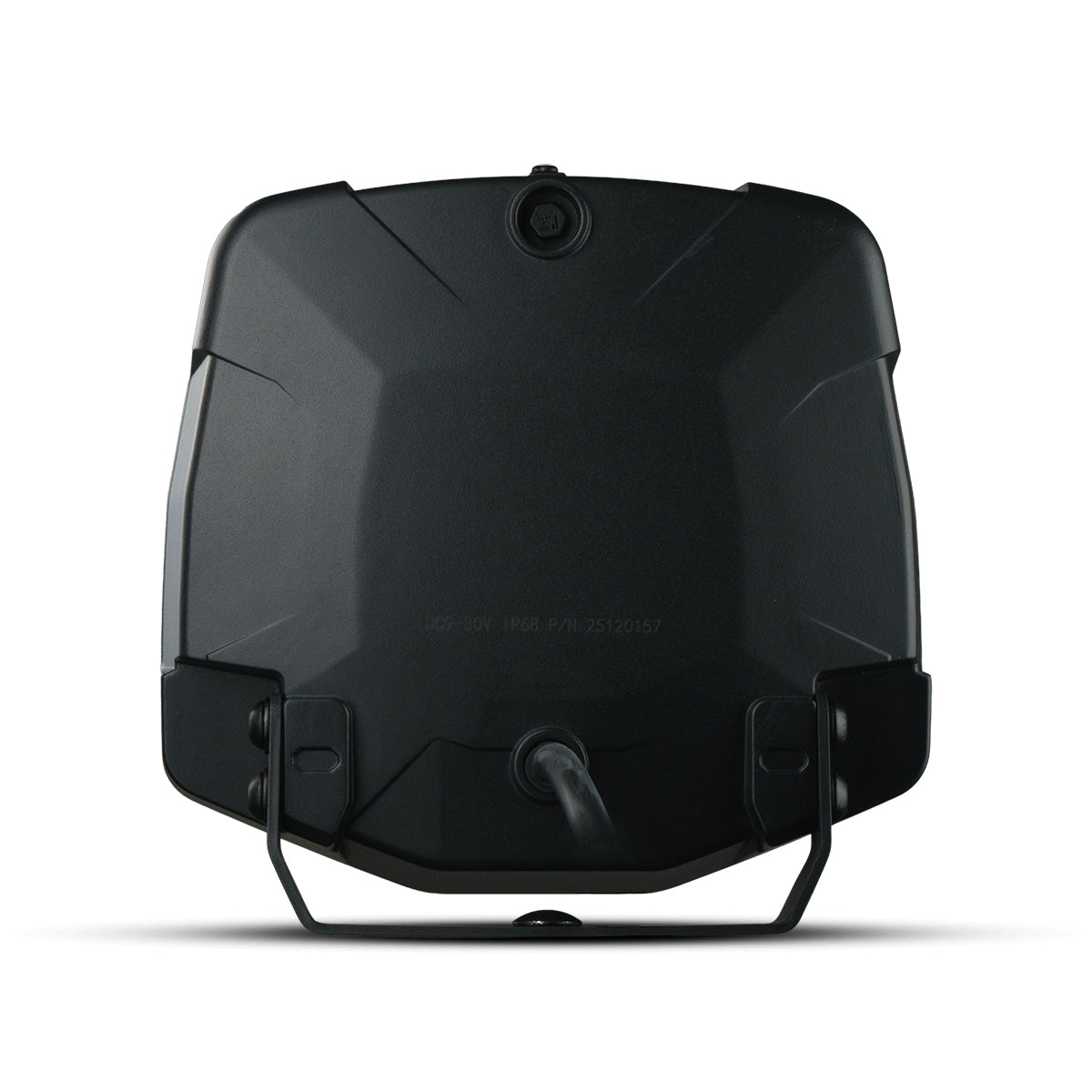

• Mounting: Bottom bracket
• Warranty, months: 24 months

Order the Monsterlux Dark Digger 10 “double D 10” and experience a new era of auxiliary lighting: select e-Safe for road use – or activate Monster Mode™ when you need uncompromising maximum performance.
