Monsterlux Core 9 LED Auxiliary Light with White Housing

Powerful 9” LED auxiliary light with modern dark optics

• Wide beam pattern with extremely long range
• 436 m range in E-approved mode, up to 667 m in Monster Mode
• 5000 K colour temperature provides a pleasant and clear light tone
• Robust white housing, IP68 protection and sturdy mounting
• White and amber position lights complete the appearance

Striking 9” auxiliary light – modern dark optics, reliable visibility

Monsterlux Core 9 with white housing is a round 9-inch LED auxiliary light with dark optics, combining a clear, road-legal beam pattern with a stylish appearance. The Core 9 was developed for drivers who want powerful long-range and wide-area illumination, while retaining an eye-friendly, comfortable light and a refined construction without unnecessary gimmicks. Road approval and carefully designed optics make it a safe choice for everyday use.

Clear, eye-friendly beam pattern

The Core 9’s optics are tuned to provide a balanced combination of central-beam range and visibility extending to the sides. The pleasant colour profile maintains clear contrast in snow, rain and darkness. The result is an extremely powerful yet comfortable view that reduces driver fatigue, even on long journeys.

Monster Mode™ – unleash full power

Monster Mode™ is a separate power mode that unleashes the light’s maximum performance. It provides a clear increase in both light output and range at 1 lux compared with the standard mode.

Note! Monster Mode is intended for off-road use only and is not approved for road use. It is activated using, for example, a separate wire and switch, allowing the driver to select either ECE mode or Monster Mode according to the situation.

Durable, low-maintenance construction and finish

The robust housing, hard-coated lens and sealed construction are designed to withstand everyday stresses – water, salt, vibration and freezing temperatures. Installation is straightforward, and the striking housing design complements the vehicle’s appearance beautifully without requiring modifications.

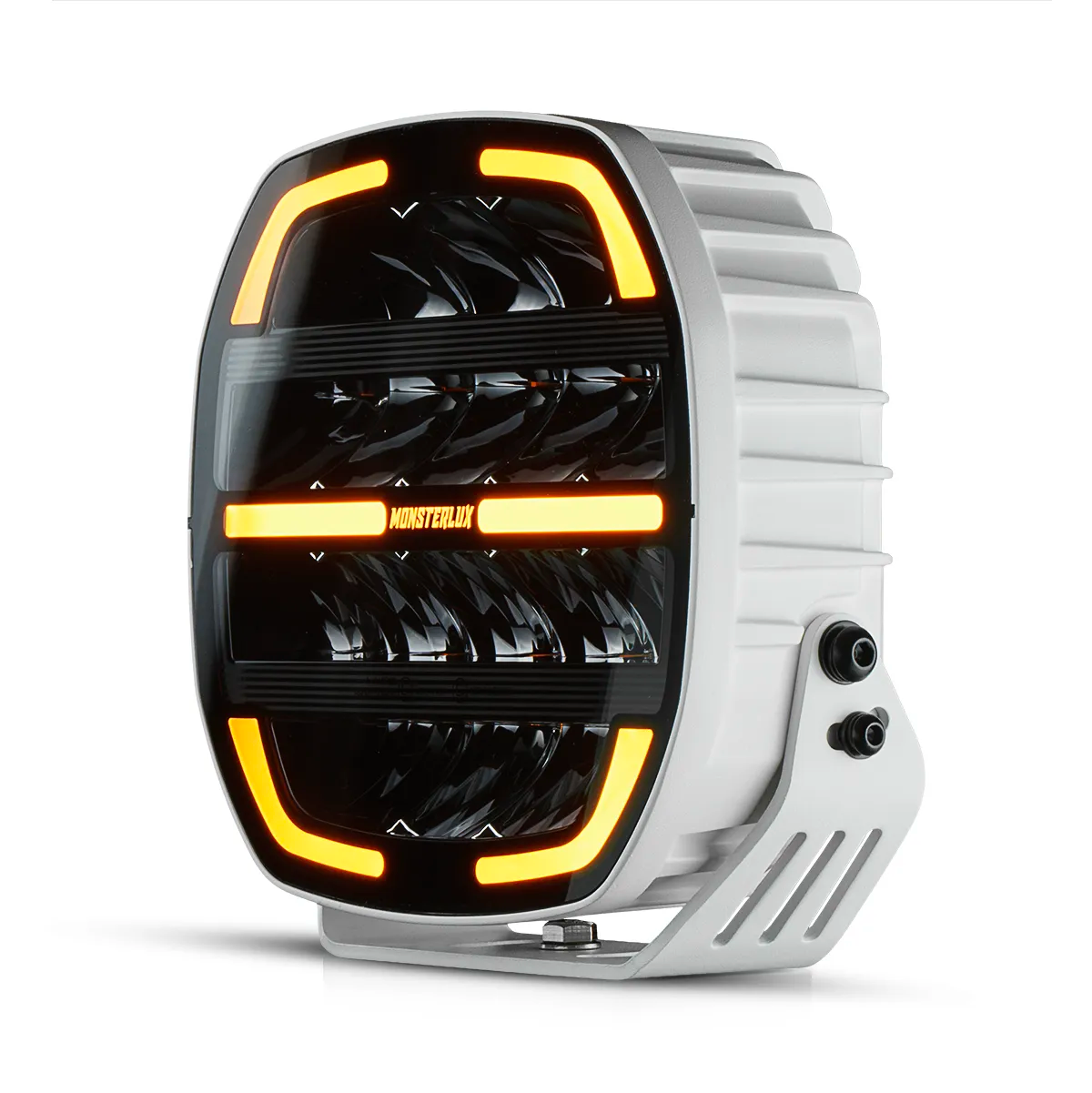

Position lights complete the appearance and visibility

The Core 9 features stylish position lights that improve visibility and give the front of the vehicle a refined appearance. The light integrates into a cohesive overall design – elegant by day, powerful by night.

Versatile applications

The Core 9 performs excellently as a pair of auxiliary lights or as part of a multi-light installation. Its wide operating-voltage range and clear connections make it a reliable choice for cars, commercial vehicles and machinery. It performs excellently both at standard number-plate mounting heights and in high roof-mounted installations.

Easy installation – 2-pin Deutsch DT connector & sturdy mounting

The Core 9 is designed for easy installation. The 2-pin Deutsch DT connector pre-installed on the connection cable makes wiring fast and neat – with no soldering required.

• Plug & Play: simply connect the included mating connector – a durable, weather-protected connection.
• Clear wiring: the wires are easy to identify, and the connector locks securely even under vibration.
• Easy maintenance: the connector can be disconnected in seconds for inspection or repositioning.

Sturdy bracket and support points

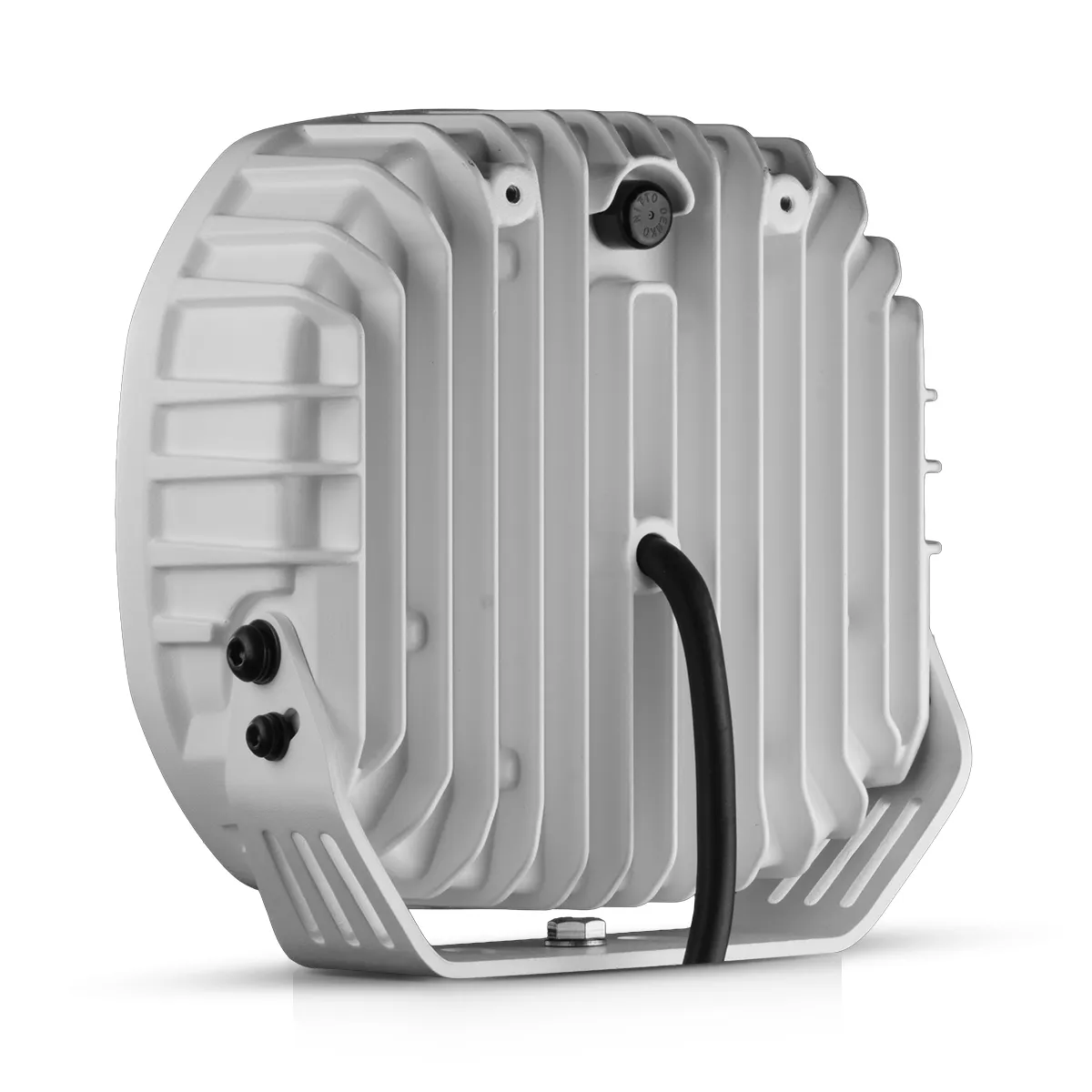

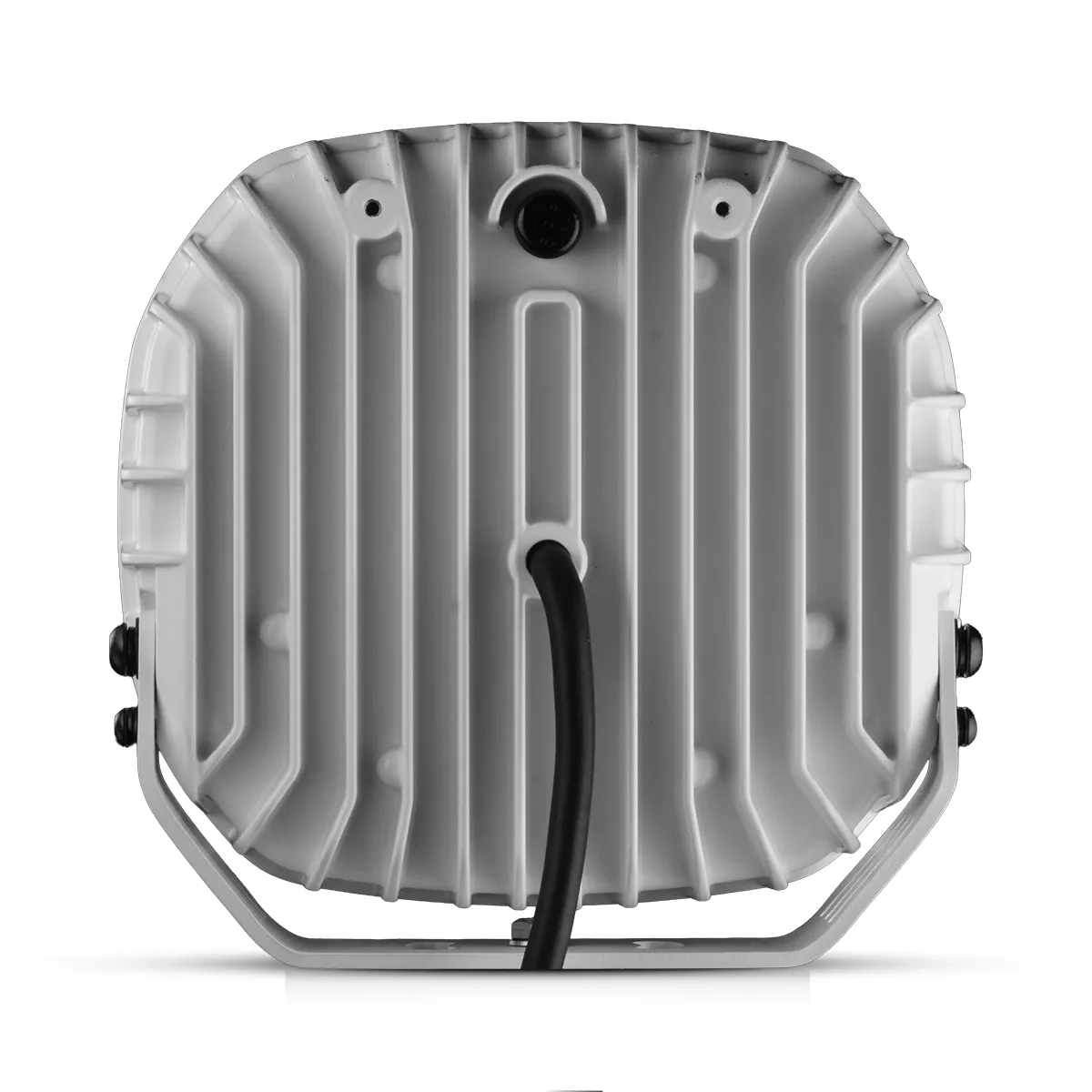

The standard sturdy bracket keeps the light securely in place even in heavy-duty use. The support points on the rear of the housing allow additional support for roof or bumper installations, for example, reducing vibration and resonance while keeping the beam pattern stable.

• Wide adjustment range: the tilt angle is easy to fine-tune for an optimal beam pattern.
• Robust construction: the thick mounting lug and rigid bracket withstand vibration and impacts.
• Additional support option: additional support rods or dampers can be attached to the support points for demanding installations.

Technical specifications

• Product number: 3550-901002
• Make and model: Monsterlux Core 9, white housing
• Lumens: 4523 lm (E-approved, measured) 9600 lm (Monster Mode, measured)

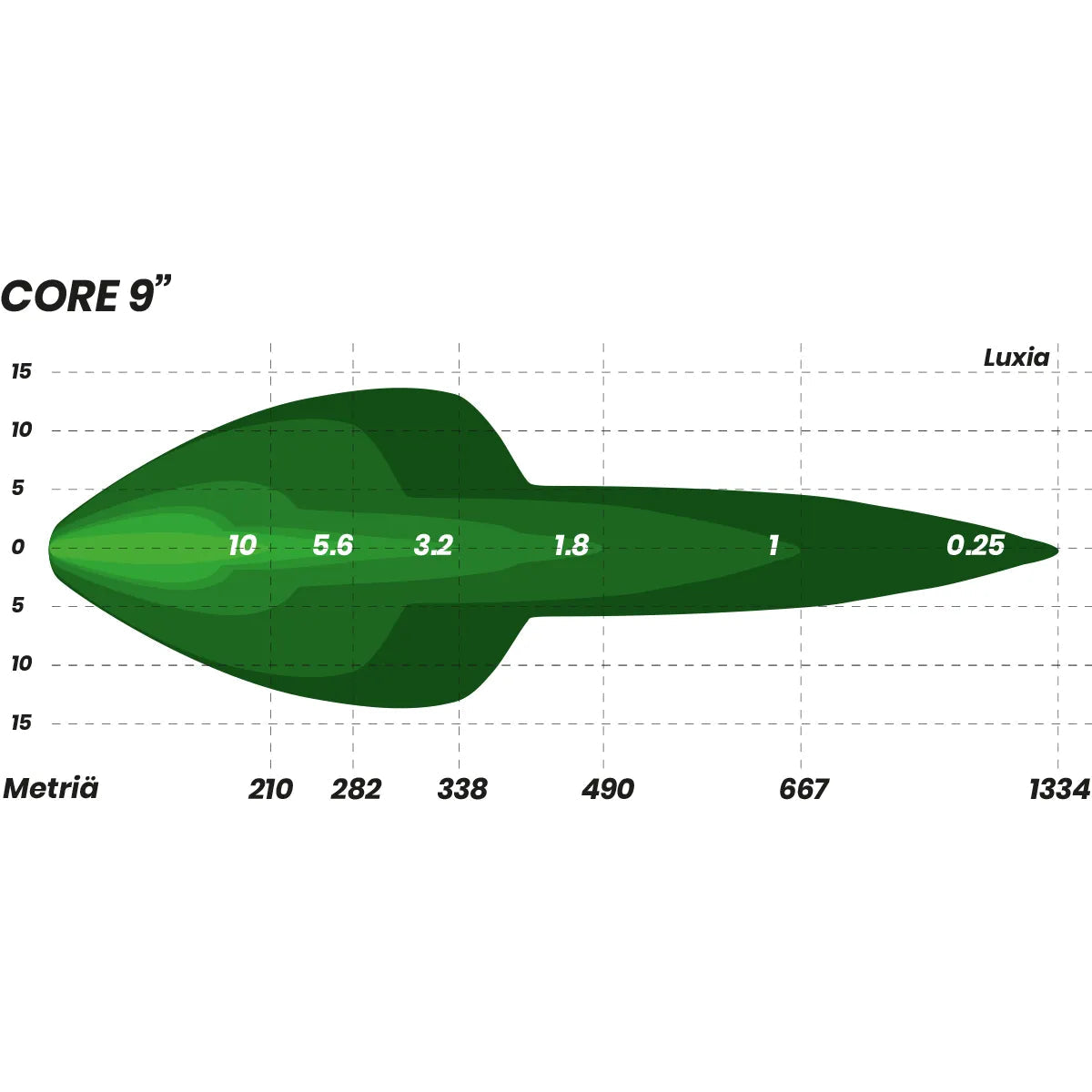

• Range: 436 m (E-approved) 667 m (Monster Mode)
• Colour temperature: 5000 K
• Current draw at 13.7 V: 3.67 A (E-approved) 12.82 A (Monster Mode)
• Operating voltage: 9–36 V
• Power: 50.2 W (E-approved) 175 W (Monster Mode)
• Reference number: 45
• Position light: Yes, white and amber
• Road approved: Yes
• Approvals: 148, 149, R10
• IP rating: IP68
• Connector type: 2-pin Deutsch DTP
• Mating connector: Yes
• Cable length: 50 cm
• Shape: Round 9”
• Dimensions 220 × 205 × 74 mm (Width|Height|Depth) ((Height with bracket 117 mm))
• Weight: 2.6 kg
• LEDs: 16 × LED
• Light output adjustment (boost): Yes
• Mounting: Bottom bracket
• Warranty, months: 24

Order the Monsterlux Core 9 – elegant design in a 9” size, featuring modern dark optics, tremendously powerful range and a clean finish for everyday driving.
