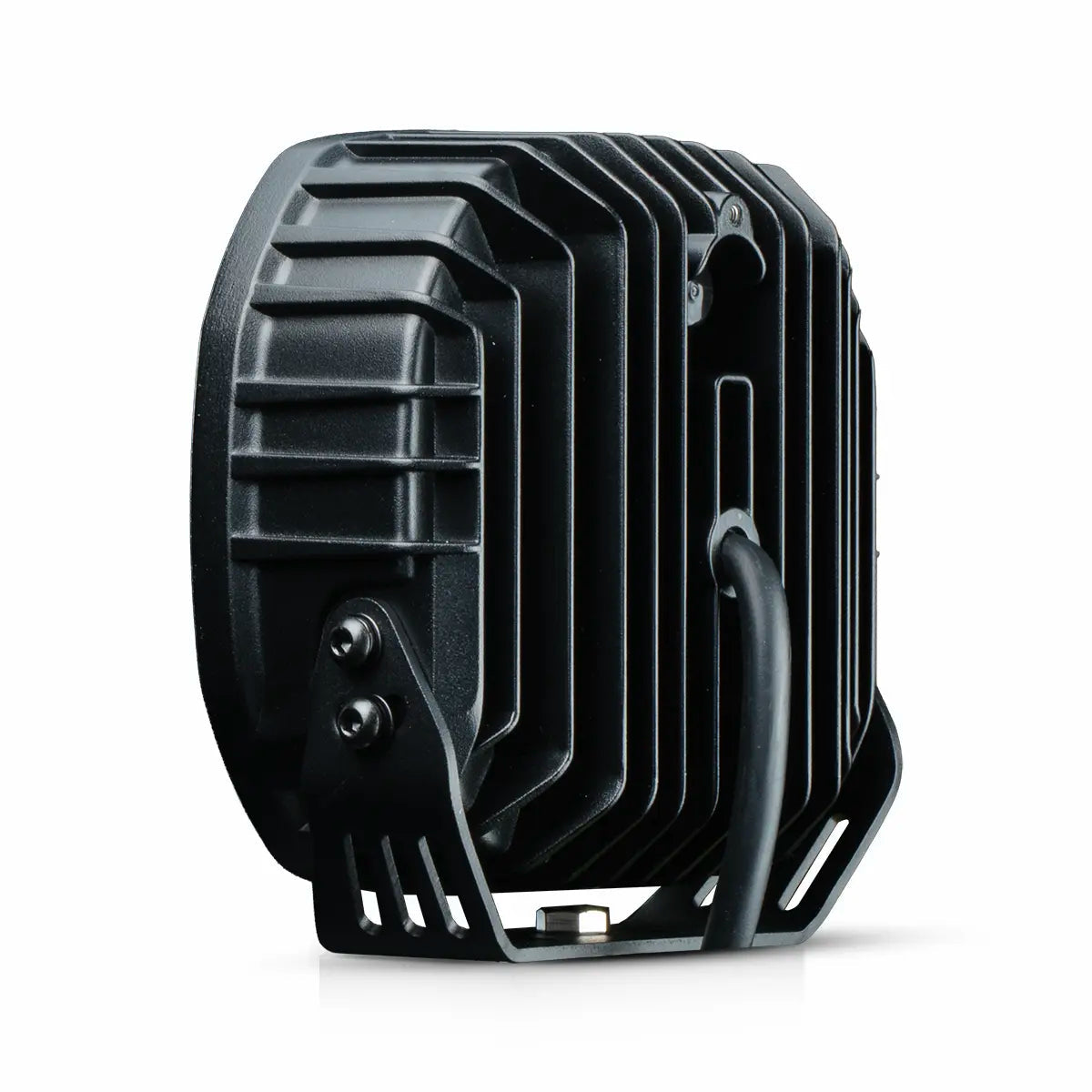

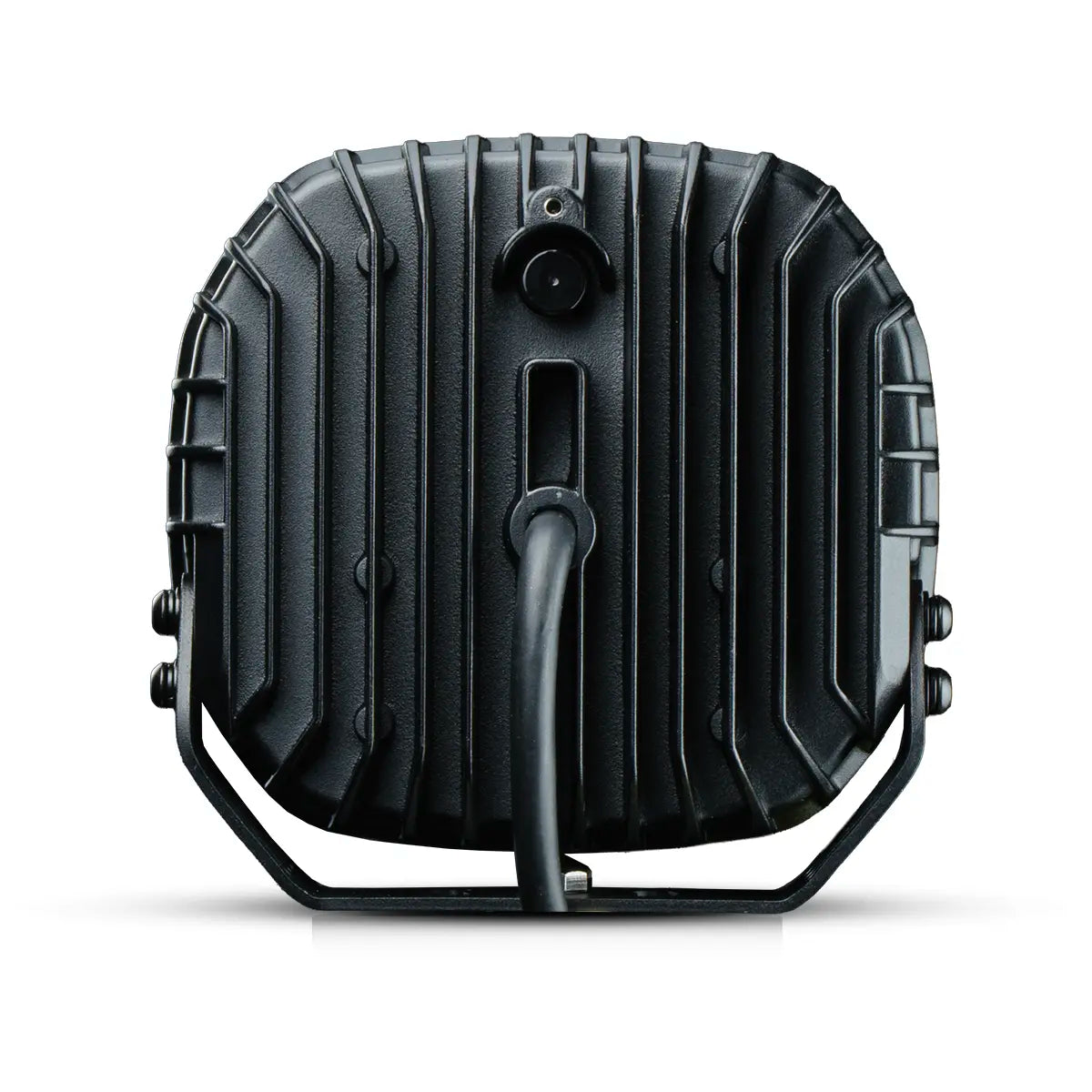

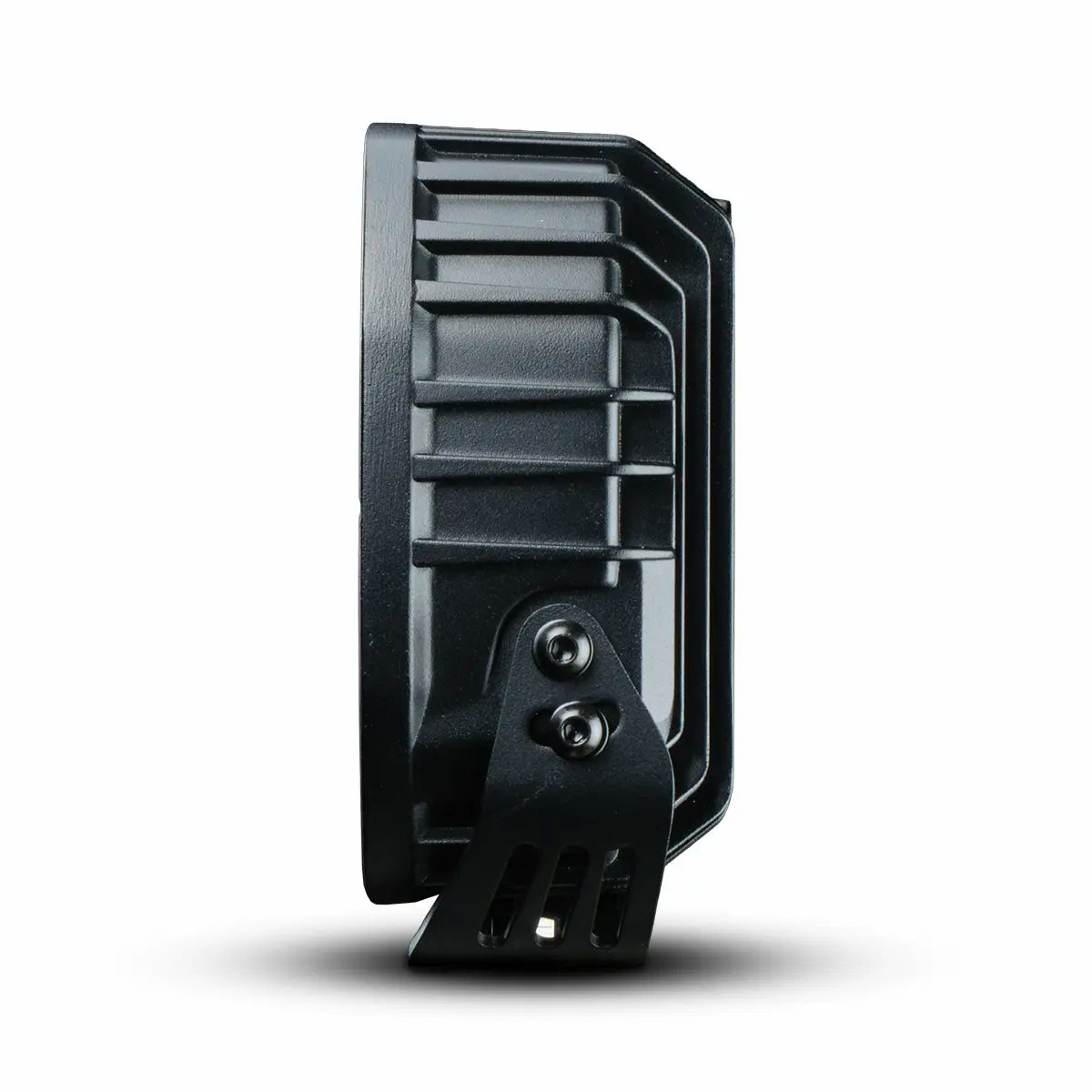

Monsterlux Core 7 LED auxiliary light with black housing

Powerful 7” LED auxiliary light with modern dark optics

• Road-approved 7” LED auxiliary light with a stylish appearance
• Balanced beam pattern with long range and wide visibility
• 5000 K colour temperature ensures pleasant light for Nordic conditions
• Monster Mode™ provides additional power for off-road use
• Striking position lights complete the appearance and improve visibility

Monsterlux Core 7 is a round 7” LED auxiliary light with modern dark optics, combining powerful range, a pleasant beam pattern and a refined appearance. The light is designed for daily use by drivers who value clear visibility, stylish design and reliable operation without unnecessary complexity.

The balanced beam pattern combines long range with visibility extending to the sides, improving driving comfort even in challenging conditions. The 5000 K colour temperature provides natural, eye-friendly light, particularly in darkness, rain and snowy conditions. Monster Mode™ unleashes the light’s maximum performance for off-road use, significantly increasing both light output and range.

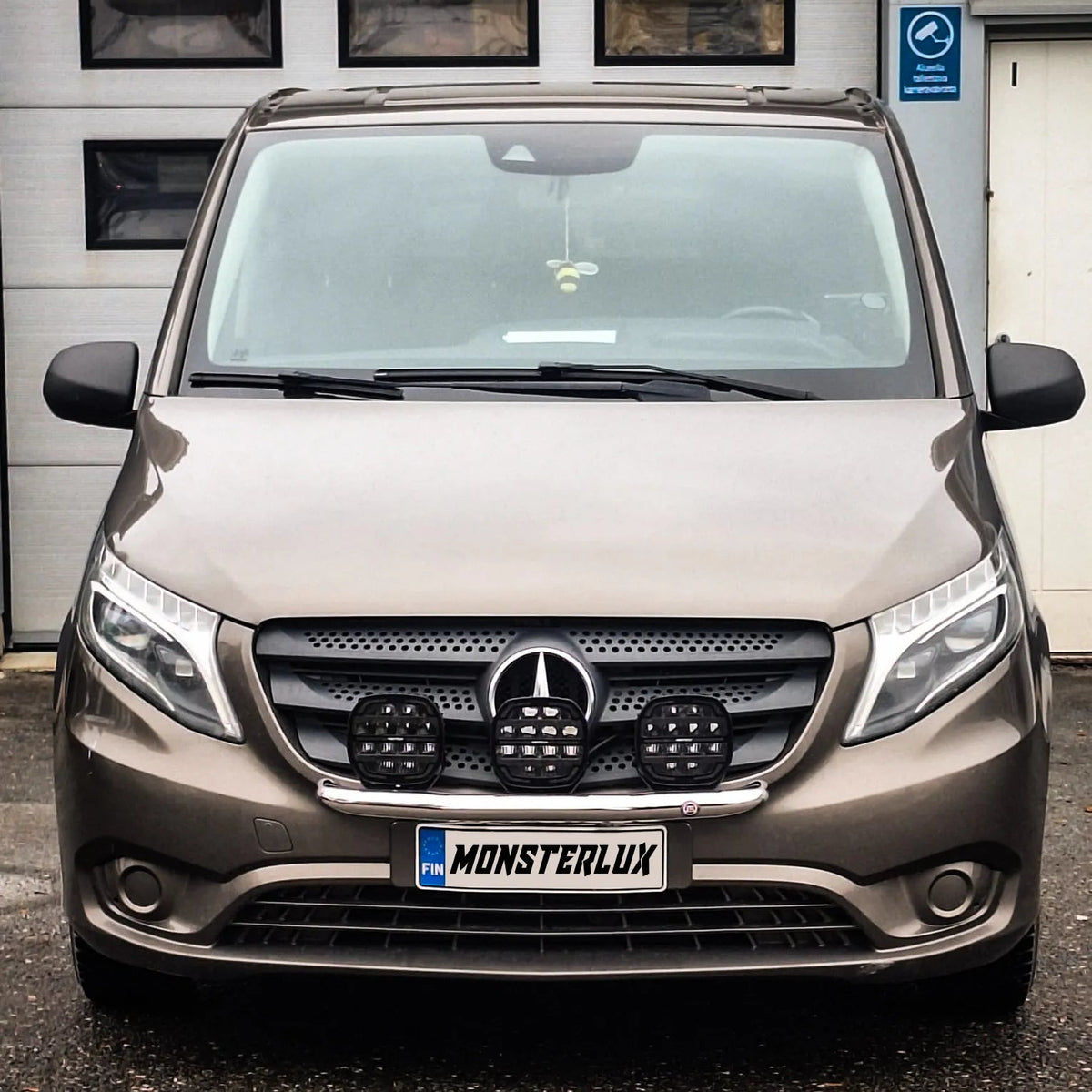

The durable housing, hard-coated lens and IP68 protection make the Core 7 a reliable choice for year-round use. White and amber position lights complete the modern appearance. The light is well suited to ATVs, passenger cars, commercial vehicles and machinery, both as a pair of auxiliary lights and in multi-light configurations.

Technical specifications

• Product number: 3555-701001
• Make and model: Monsterlux Core 7
• Lumens: 5134 lm (E-approved, measured) 7513 lm (Monster Mode, measured)
• Range at 1 lux: 445 m (E-approved) 700 m (Monster Mode)
• Colour temperature: 5000 K
• Current draw at 13.7 V: 2.8 A (E-approved) 9.8 A (Monster Mode)
• Operating voltage: 9–36 V
• Power: 38 W (E-approved) 134 W (Monster Mode)
• Reference number: 45

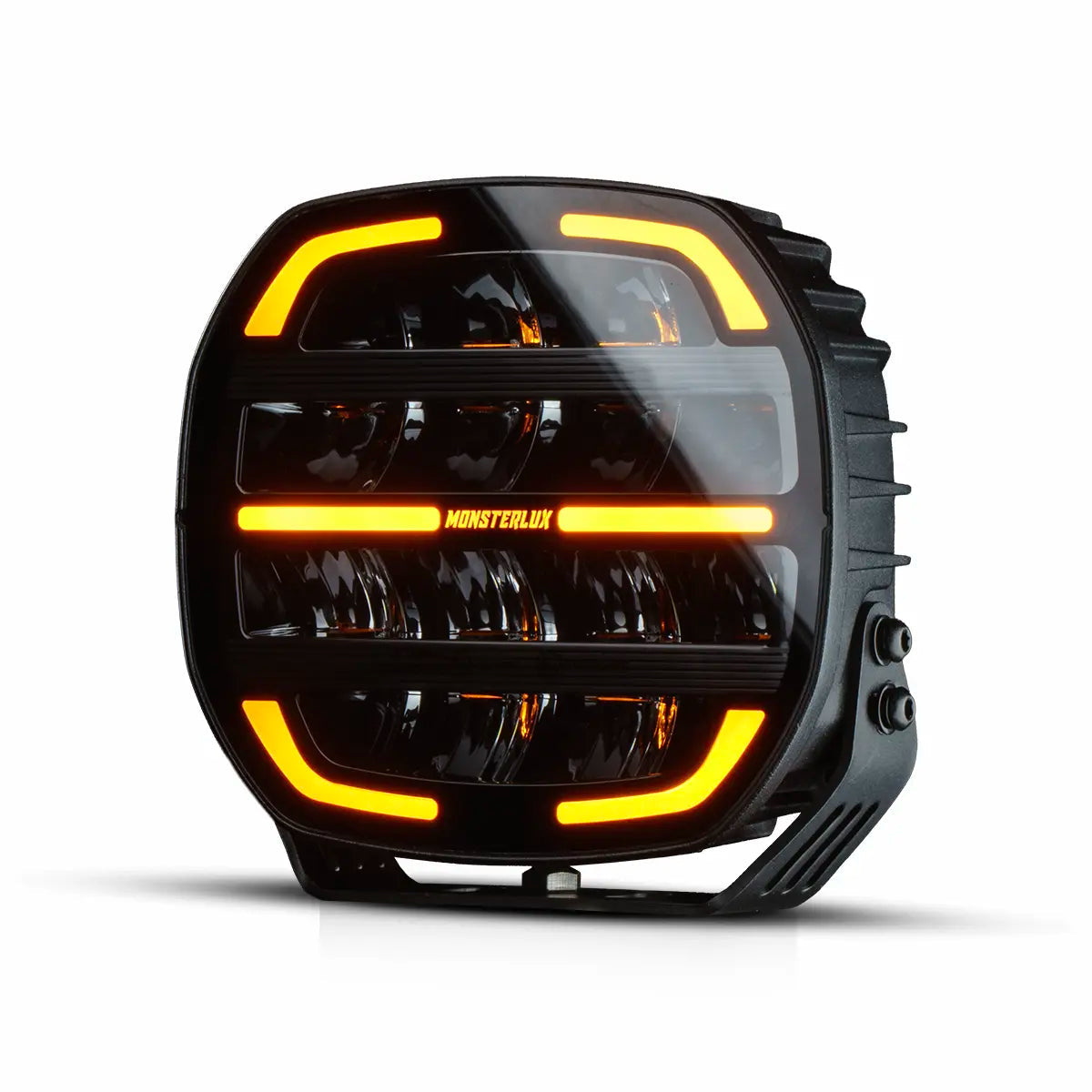

• Position light: Yes, white and amber
• Road approved: Yes
• Approvals: 148, 149, R10
• IP rating: IP68
• Connector type: 2-pin Deutsch DTP
• Mating connector: Yes
• Cable length: 50 cm
• Shape: Round 7”
• Dimensions: 171 × 159 × 73 mm (Width|Height|Depth) ((Height with bracket 171 mm))
• Weight: 1.6 kg
• LEDs: 12 × LED
• Light output adjustment (boost): Yes
• Mounting: Bottom bracket
• Warranty, months: 24
